01 / PRODUCT DETAILS
Secure card reading
Reads up to three tracks of card data, in both directions, with Triple DES encryption available.
EasyConnect MSR module
View specifications
Tablet PC modules
EasyConnect MSR

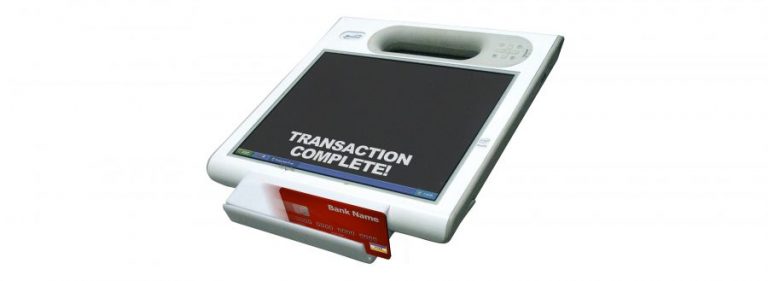

A snap-on magnetic stripe reader for Motion Computing x5 Tablet PCs: the mobility of a hand-held point-of-sale device with the flexibility of a full PC. The tablet is not included.
Product features
Designed for your workstation.
02 / PRODUCT DETAILS
No extra drivers
Works with the standard Windows HID driver, or as a keyboard.
03 / PRODUCT DETAILS
More connections
Adds USB and Ethernet ports, by request.
04 / PRODUCT DETAILS
Snap-on design
Lightweight and easy to remove, with no external power supply.
At a glance
Product specifications
| Product | EasyConnect MSR |
|---|---|
| Compatibility | Motion Computing x5 Tablet PCs (not included) |
| Card standards | ANSI, ISO and AAMVA, including ISO track 1 format on track 2 or 3 |
| Interface | Windows HID or keyboard emulation |
| Connections | USB or Ethernet, by request |
| Material | Cycoloy CX7240, UL94V0 rated |
| Compliance | CE, FCC, UL 60950-1 / CSA C22.2 No. 60950-1 |
| Operating and storage temperature | -40 to 70°C (-40 to 158°F) |
| Power | 2.5 W maximum; 19.0 V DC, regulated to 5 V for the USB ports |
| Dimensions | 145 × 58 × 27 mm |
| Weight | 105 g |
| Colors | Black or Hygienic White |
| Warranty | 1-year replacement |
Make it fit
Software
For technical support, email [[email protected]](mailto:[email protected]).
Keyboard emulation mode
Software to switch the reader to keyboard emulation.
Download the software (ZIP)Product support
Everything you need to get started.
Need help choosing a configuration?
Share your workstation, cleaning, and quantity requirements with MMI.
